Expose the webapp pod outside the cluster with a NodePort Service, open the port in the node security group, reach it in a browser, and understand why NodePort is not used for production traffic.

ClusterIP keeps everything inside the cluster. The first time you want to open your application in a browser, you need something that crosses the boundary between the cluster and the outside world. The simplest option is NodePort.

How NodePort works

A NodePort Service does three things:

It creates a normal ClusterIP for internal use, exactly like the previous lesson.
It reserves a port from the node port range, 30000 to 32767, and opens that same port on every worker node.
kube-proxy on each node forwards anything arriving on that port to the Service, which forwards to a matching pod.

browser  ->  <any-node-public-ip>:30080  ->  ClusterIP :80  ->  pod :8080

You can choose the port with nodePort, or let Kubernetes pick a free one from the range. Choosing it yourself makes your firewall rules and notes predictable; letting Kubernetes pick avoids collisions when many teams share a cluster.

Step 1: Write the manifest

The webapp pod from First Pod Creation should be running.

vi nodePort-service.yml

nodePort-service.yml

apiVersion: v1
kind: Service
metadata:
  name: webapp-nodeport-svc
spec:
  type: NodePort
  selector:
    app: telusko-webapp
  ports:
    - port: 80
      targetPort: 8080
      nodePort: 30080

Field	Meaning
`type: NodePort`	Without this line you get a ClusterIP Service
`selector.app`	Must match the pod label `telusko-webapp`
`port: 80`	The port of the internal ClusterIP
`targetPort: 8080`	The port the Spring Boot app listens on inside the container
`nodePort: 30080`	The port opened on every node. Must be between 30000 and 32767 and unused, or the API server rejects it

Step 2: Create it

kubectl apply -f nodePort-service.yml
kubectl get svc

NAME                  TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
kubernetes            ClusterIP   10.100.0.1       <none>        443/TCP        171m
webapp-nodeport-svc   NodePort    10.100.24.0      <none>        80:30080/TCP   15s
webapp-svc            ClusterIP   10.100.113.192   <none>        80/TCP         97m

80:30080/TCP reads as "Service port 80, node port 30080". The NodePort Service still has its own CLUSTER-IP, which shows that a NodePort is a ClusterIP plus an extra door.

Step 3: Find a node's public IP

The easiest way is kubectl:

kubectl get nodes -o wide

The EXTERNAL-IP column shows each node's public IP. eksctl puts the default node group in public subnets, so the nodes have public IPs. (Node groups in private subnets have none, and then NodePort cannot be reached from the internet at all.)

The lecture finds the node that runs the pod first, with kubectl get pods -o wide, and then looks up that node's public IP in the EC2 console. That works, but it is not required: any node's public IP works, because the port is open on every node and kube-proxy forwards across nodes. Try both nodes and see for yourself.

Step 4: Allow the port in the security group

The worker nodes sit behind an EC2 security group created by eksctl. Inbound traffic from the internet on port 30080 has to be allowed:

Open the node's security group

In the EC2 console, select one of the worker node instances, open the Security tab and click its security group.

Add an inbound rule

Edit inbound rules, Add rule: type Custom TCP, port 30080, source My IP. Save.

The lecture uses source Anywhere (0.0.0.0/0). For a practice cluster, My IP is safer: only your network can reach the port. Remove the rule when you finish.

Step 5: Open it in the browser

http://<node-public-ip>:30080

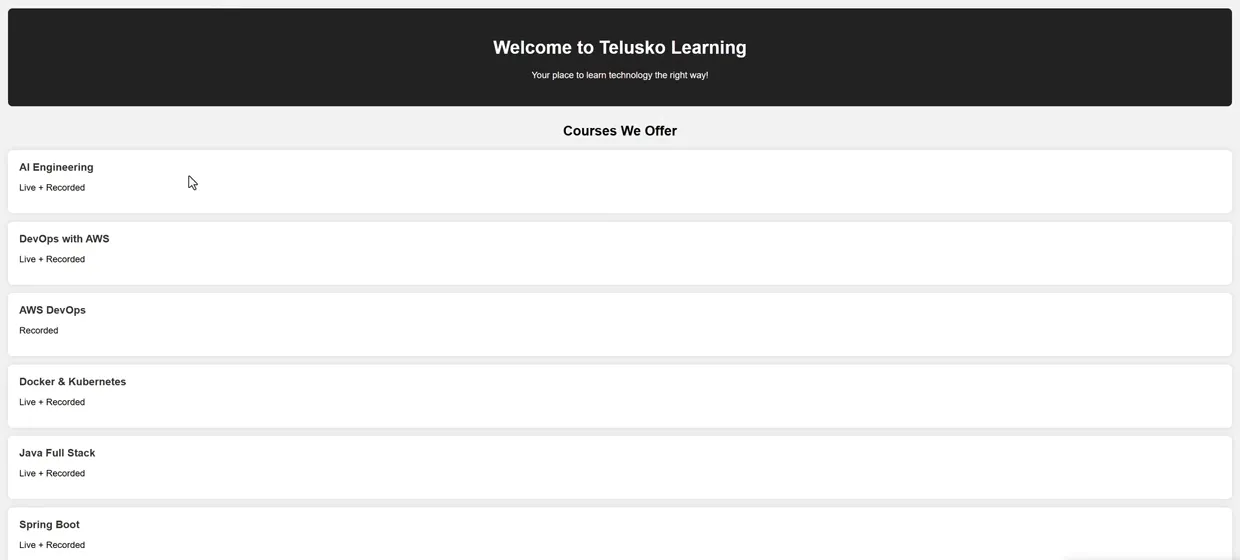

The Telusko Learning Spring Boot page showing a list of courses, served from the pod

The Spring Boot application from the lecture, served by the pod through the NodePort.

You can test from the EKS home server too:

curl http://<node-public-ip>:30080

Why NodePort is not for production

NodePort works, and it is handy for a quick test. It is not how you expose a real application, for these reasons:

Limitation	Why it matters
Clients must know a node IP	Nodes are replaced during upgrades and scaling, and their IPs change. Every client would need updating
No health-checked front door	If the node a client uses goes down, that client fails, even though other nodes are fine
Unusual high ports	Users expect port 80 or 443, not 30080
Every node is opened	You must open the port on the node security group for all nodes
Load spreads per connection only	There is no proper external load balancer distributing clients across nodes

A correction to the lecture

The lecture says NodePort sends all traffic to the single node whose IP you use, which would overload that node. Traffic does enter through the node you choose, but kube-proxy can forward it to a pod on any node, so it is not limited to pods on that node. The real issue is the list in the table above. The fix is the same either way: put a load balancer in front, which is exactly what the LoadBalancer Service does.

NodePort is also the building block underneath LoadBalancer Services on EKS, so the concept is worth understanding even if you rarely type type: NodePort at work.

Clean up

kubectl delete -f nodePort-service.yml

Remove the inbound rule for port 30080 from the node security group. If you are done for the day, delete the cluster: eksctl delete cluster --name telusko-learning --region ap-south-1 --wait.

Try It Yourself

Create the NodePort Service and open the app using both nodes' public IPs. Both should work.
Remove nodePort: 30080 from the manifest, delete and recreate the Service, and see which port Kubernetes picks.
Try nodePort: 8080 and read the error from the API server.
Remove your security group rule and try the browser again. What happens, and why?
