Expose the webapp pod to the internet through an AWS load balancer created by a Service of type LoadBalancer, see what EKS builds behind the scenes, and clean it up so it stops billing.

ClusterIP is internal. NodePort works but makes users type a node IP and a strange port. What we actually want is one stable public address, on port 80, with a proper load balancer in front that checks which backends are healthy. On a cloud such as AWS, Kubernetes can create that load balancer for you. You only change one word in the Service: type: LoadBalancer.

How it works on EKS

When you create a Service of type LoadBalancer:

Kubernetes creates a ClusterIP and a NodePort for the Service, exactly as in the previous two lessons.
A cloud controller sees the new Service and calls the AWS API to create an Elastic Load Balancer, together with a security group and the backend registration.
AWS gives the load balancer a DNS name. Kubernetes writes it into the Service's EXTERNAL-IP column.
Traffic flows: internet, AWS load balancer, node port on a worker node, ClusterIP, pod.

browser -> AWS load balancer (port 80) -> node:31463 (NodePort) -> ClusterIP -> pod:8080

You never create the load balancer, target registration or security group yourself. Delete the Service and they go away too.

Step 1: Start clean

The lecture first removes everything from the previous lessons:

kubectl delete all --all

Know what delete all --all really does

kubectl delete all --all deletes every pod, Service, Deployment, ReplicaSet, StatefulSet, DaemonSet, Job and CronJob in the current namespace. Never run it against a shared or production cluster. Two things often surprise people: "all" does not include ConfigMaps, Secrets, PersistentVolumeClaims or Ingresses, so those survive; and it deletes the built-in kubernetes Service too, which the control plane recreates automatically within seconds. A safer habit is deleting what you created with kubectl delete -f <file>.

Your manifest files on disk are not touched, so recreate the pod:

kubectl apply -f k8s-pod.yml
kubectl get pods

Open EC2, then Load Balancers in the AWS console. There should be none yet.

Step 2: Write the Service

vi k8s-lbr-svc.yml

k8s-lbr-svc.yml

apiVersion: v1
kind: Service
metadata:
  name: webapp-lbr-svc
spec:
  type: LoadBalancer
  selector:
    app: telusko-webapp
  ports:
    - port: 80
      targetPort: 8080

Field	Meaning
`type: LoadBalancer`	Ask the cloud for an external load balancer
`selector.app: telusko-webapp`	Same label as before. The label on the pod is what connects everything
`port: 80`	The port on the load balancer (and the ClusterIP). Users browse to port 80
`targetPort: 8080`	The Spring Boot container port

No nodePort here. Kubernetes picks one automatically, and you never need to open it to the internet yourself; the load balancer's security group rules are created for you.

Step 3: Create it and wait

kubectl apply -f k8s-lbr-svc.yml
kubectl get svc

NAME             TYPE           CLUSTER-IP    EXTERNAL-IP                                                                PORT(S)        AGE
kubernetes       ClusterIP      10.100.0.1    <none>                                                                     443/TCP        6m10s
webapp-lbr-svc   LoadBalancer   10.100.84.54  aefe9725b54fe4fcca64b49573b6a22d-2072396358.ap-south-1.elb.amazonaws.com   80:31463/TCP   13s

Column	What it shows
`TYPE LoadBalancer`	The type you asked for
`EXTERNAL-IP`	The DNS name of the AWS load balancer. On AWS it is a hostname, not an IP. It shows `<pending>` for the first few seconds
`PORT(S) 80:31463/TCP`	Port 80 on the load balancer, mapped to node port 31463, picked at random

Refresh EC2, Load Balancers in the console and the new load balancer is there:

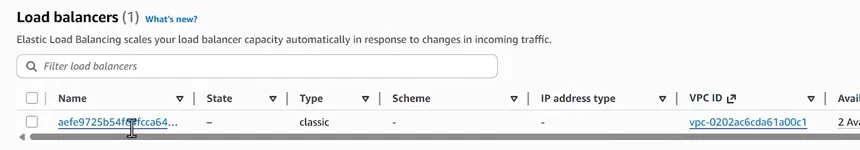

EC2 Load balancers list showing one load balancer of type classic created by Kubernetes

The load balancer Kubernetes created. Note the Type column says classic.

Copy the DNS name and open it in the browser:

http://aefe9725b54fe4fcca64b49573b6a22d-2072396358.ap-south-1.elb.amazonaws.com

Give it two to five minutes. The DNS name has to propagate and the load balancer has to mark the nodes healthy. A "site can't be reached" error in the first minutes is normal. Then you see the same Telusko Learning page as in the NodePort lesson, now on a normal URL with no port number.

This is the usual way to expose an application to users with a plain Service. For several HTTP applications behind one load balancer, teams add an Ingress on top, but the LoadBalancer Service is the foundation.

Which load balancer did EKS create?

Classic Load Balancer vs the AWS Load Balancer Controller

With no extra setup, EKS uses the built-in AWS cloud provider controller, which creates a Classic Load Balancer by default, as you can see in the console. Classic Load Balancers are the previous generation of ELB, and the Amazon EKS documentation notes that this built-in controller now only receives critical bug fixes.

For anything beyond practice, AWS recommends installing the AWS Load Balancer Controller (version 2.7.2 or later) in the cluster. With it, a type: LoadBalancer Service gets a modern Network Load Balancer. You select it with annotations such as:

metadata:
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing

Without the internet-facing scheme annotation the controller creates an internal load balancer by default. Installing the controller needs IAM setup, so we stay with the default behaviour in this course.

Summary of the three Service types

	ClusterIP	NodePort	LoadBalancer
Reachable from	Inside the cluster	Outside, through any node IP	Outside, through a cloud load balancer
Address users see	`webapp-svc` (DNS, internal)	`<node-ip>:30080`	`<name>.elb.amazonaws.com`
Creates AWS resources	No	No (you open a security group port)	Yes: load balancer and security group
Extra cost	None	None	Load balancer billed per hour plus data
Use it for	Service-to-service calls	Tests and labs	Exposing apps to users

Clean up (important)

Delete the Service before you delete the cluster

The load balancer is a real AWS resource billed by the hour. Delete the Service so Kubernetes removes it. If you delete the cluster while a LoadBalancer Service still exists, the load balancer can be left behind, keep charging you, and block eksctl from deleting the VPC.

kubectl delete -f k8s-lbr-svc.yml
kubectl get svc                         # webapp-lbr-svc should be gone

Wait a minute, then confirm in EC2, Load Balancers that the list is empty. The lecture then cleans up everything else with kubectl delete all --all; deleting by file is the cleaner habit:

kubectl delete -f k8s-pod.yml

If you are stopping for the day: eksctl delete cluster --name telusko-learning --region ap-south-1 --wait.

Try It Yourself

Create webapp-lbr-svc and time how long it takes until the DNS name opens the app.
Run kubectl describe svc webapp-lbr-svc and find the LoadBalancer Ingress, NodePort and Endpoints lines. Match each to a hop in the traffic flow.
In the EC2 console, open the load balancer's Instances or health check tab and confirm both worker nodes are registered, even though only one runs the pod.
Delete the Service and confirm the AWS load balancer disappears.
