Garbage Collector Types

Garbage Collection (GC) in Java is the automatic process of reclaiming heap memory occupied by objects that are no longer reachable. Unlike manual memory management in C or C++, Java delegates memory cleanup to the JVM, reducing memory leaks, dangling pointers, and segmentation faults.

GC is part of the JVM’s memory management system and plays a critical role in application performance, scalability, and responsiveness.

What is Garbage Collection?

Garbage Collection is the process of:

1. Identifying unreachable objects
2. Reclaiming memory used by those objects
3. Optionally compacting memory to reduce fragmentation

Example:

public class GCExample {
    public static void main(String[] args) {
        User user = new User("Alice");  // Allocated on Heap
        user = null;                    // Now unreachable

        System.gc(); // Suggests GC (not guaranteed)
    }
}

The object becomes eligible for GC once no active reference points to it.

Core GC Concepts

1. Reachability

An object is eligible for GC if it is not reachable from GC Roots.

GC Roots include:

• Local variables on the stack
• Static fields
• Active threads
• JNI references

Example:

public class ReachabilityExample {
    static User staticUser = new User("Bob");

    public static void main(String[] args) {
        User localUser = new User("Alice");
        User temp = new User("Charlie");

        temp = null; // Eligible for GC
    }
}

Only objects reachable from roots are preserved.

2. Generational Hypothesis

The JVM is based on the observation that:

Most objects die young.

To optimize for this, the heap is divided into generations:

Heap Structure:

• Young Generation

  • Eden
  • Survivor 0
  • Survivor 1

• Old Generation (Tenured)

Young generation is collected frequently and quickly. Old generation is collected less often.

3. Types of GC Events

Minor GC

• Collects Young Generation
• Fast and frequent

Major GC

• Collects Old Generation
• Slower

Full GC

• Collects entire heap (Young + Old)
• Slowest
• Causes full application pause

4. Stop-The-World (STW)

During certain GC phases, application threads are paused.

Application Running → STW Pause → GC → Resume

Reducing pause time is critical for low-latency systems.

Object Lifecycle in Generational GC

1. Objects are created in Eden space.
2. When Eden fills, Minor GC runs.
3. Surviving objects move to Survivor spaces.
4. After surviving multiple cycles, objects are promoted to Old Generation.

Example:

for (int i = 0; i < 1000; i++) {
    User user = new User("User" + i);
}

Most objects die in Eden and never reach Old Generation.

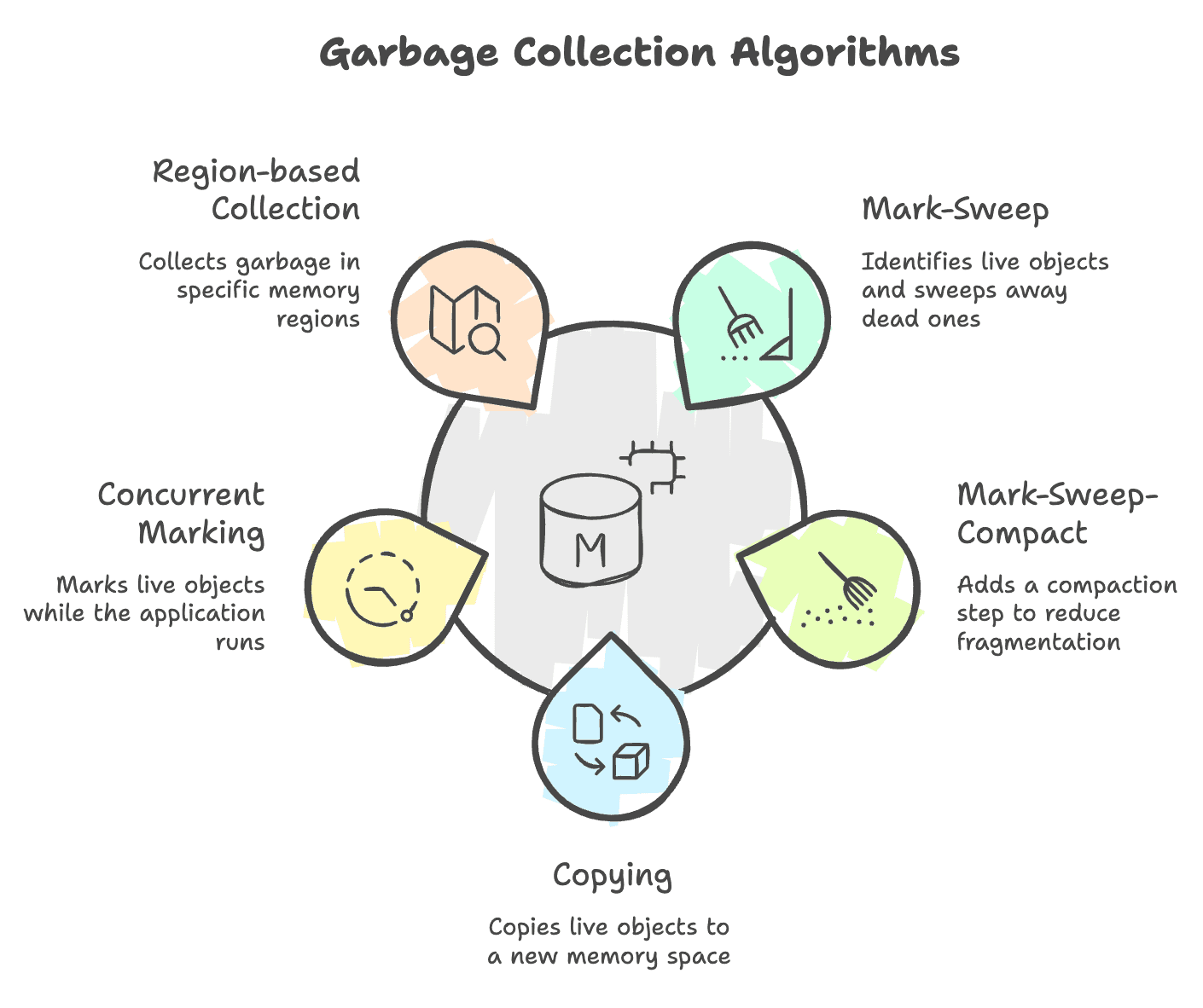

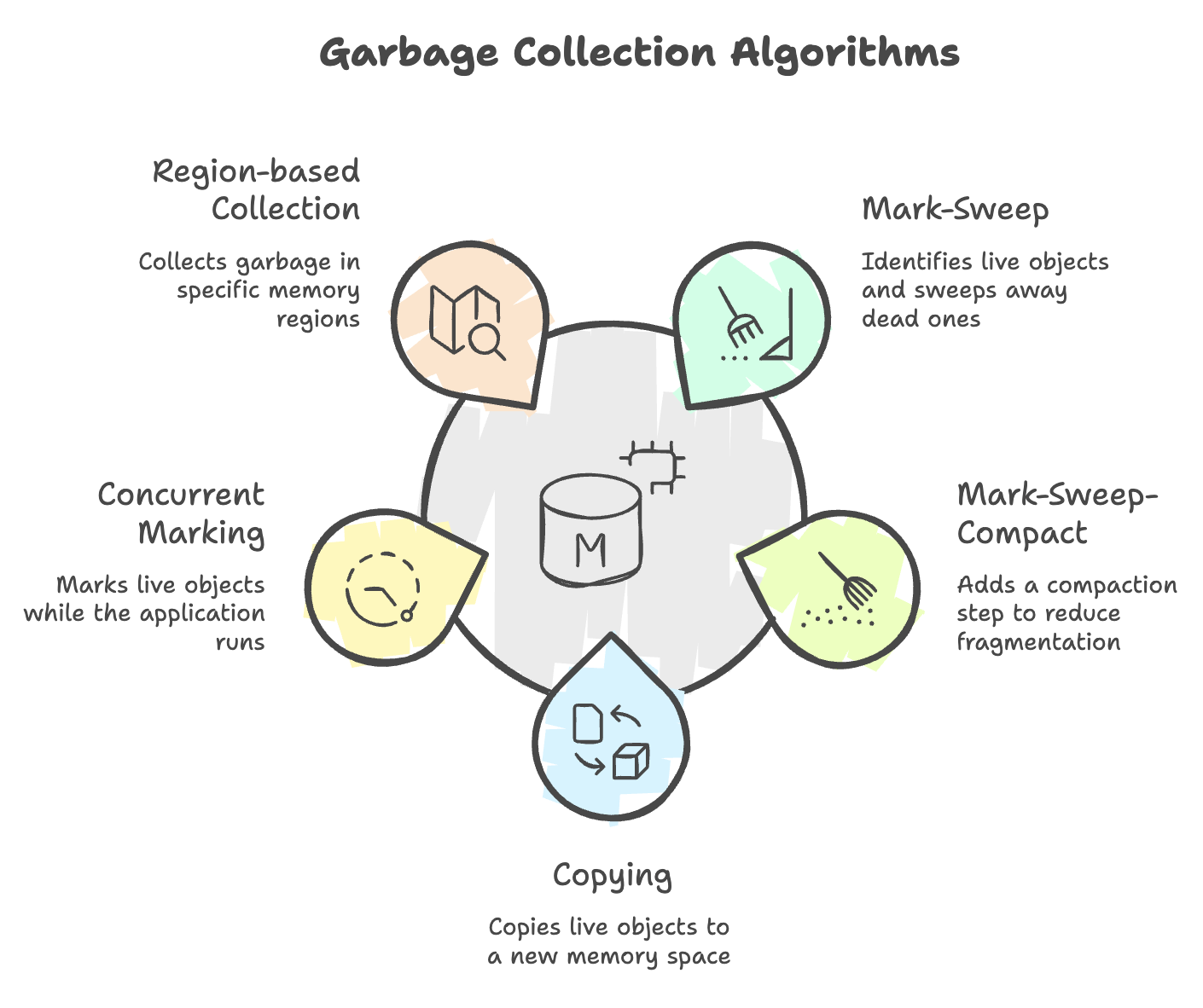

Types of Garbage Collectors in Java

Java provides multiple GC implementations optimized for different goals.

1. Serial GC

Single-threaded collector. Performs all GC work using one thread.

Characteristics:

• Stop-The-World for Young and Old
• Uses Copying (Young) and Mark-Sweep-Compact (Old)
• Minimal overhead

Use Case:

• Small heaps
• Single-core systems
• Client applications

Enable:

java -XX:+UseSerialGC MyApp

Limitation: Not suitable for large or latency-sensitive systems.

2. Parallel GC (Throughput Collector)

Multi-threaded version of Serial GC.

Characteristics:

• Stop-The-World
• High throughput
• Uses multiple CPU cores
• Default in Java 8

Use Case:

• Batch processing
• CPU-intensive applications
• Throughput-oriented systems

Enable:

java -XX:+UseParallelGC MyApp

Strength: Maximizes overall application work.

Weakness: Long pause times.

3. CMS (Concurrent Mark Sweep) – Deprecated

Designed to reduce pause times.

Characteristics:

• Concurrent marking and sweeping
• Shorter STW pauses
• No compaction (can cause fragmentation)
• Removed in Java 14

Use Case (historical):

• Low-latency web applications

Replaced by G1 GC.

4. G1 GC (Garbage-First)

Default GC in Java 9+.

Divides heap into small regions instead of fixed generations.

Characteristics:

• Predictable pause times
• Concurrent marking
• Region-based collection
• Compacts memory
• Handles large heaps efficiently

Enable:

java -XX:+UseG1GC MyApp

Set pause goal:

java -XX:MaxGCPauseMillis=200 MyApp

Best for:

• Most production systems
• Large heaps
• Balanced throughput and latency

5. ZGC (Z Garbage Collector)

Ultra-low latency collector introduced in Java 11.

Characteristics:

• Pause times typically &lt 10ms
• Pause time independent of heap size
• Fully concurrent
• Scales to multi-terabyte heaps

Enable:

java -XX:+UseZGC MyApp

Best for:

• Financial systems
• Real-time processing
• Very large heaps

Trade-off: Higher CPU and memory overhead.

6. Shenandoah GC

Low-latency collector similar to ZGC.

Characteristics:

• Concurrent evacuation
• Pause times independent of heap size
• Designed for large heaps

Enable:

java -XX:+UseShenandoahGC MyApp

Used in:

• Large-scale, low-latency systems

7. Epsilon GC

No-op collector.

Characteristics:

• Performs no garbage collection
• Allocates memory until exhausted

Enable:

java -XX:+UseEpsilonGC MyApp

Used for:

• Performance testing
• Short-lived applications

Summary

• Garbage Collection is the core of Java’s automatic memory management, using reachability analysis and generational design to efficiently reclaim unused heap memory.
• Different garbage collectors are optimized for specific goals, such as high throughput (Parallel GC), balanced performance (G1), ultra-low latency (ZGC, Shenandoah), or simplicity for small applications (Serial GC).
• Selecting the appropriate collector depends on application requirements like heap size, latency sensitivity, and workload type.
• A clear understanding of GC behavior, pause times, and heap tuning is essential for designing scalable and high-performance Java applications.
