Vector embeddings are numerical representations of text, images, or videos that capture semantic relationships and meaning. They transform human-readable content into multi-dimensional vectors that AI models can process, enabling powerful features like semantic search, text classification, and recommendation systems.

What Are Vector Embeddings?

Vector embeddings map words, sentences, or any input data into points in a multi-dimensional space where:

Similar meanings = Close proximity in space
Different meanings = Distant points in space

Visual Example

Imagine plotting words in 2D space:

Dimension 1 (Technology) →
        |
        |  Computer (0.8, 0.1)
        |  Smartphone (0.75, 0.15)
        |
        |
        |                    Dog (0.1, 0.85)
        |                    Cat (0.15, 0.82)
        |                    Animal (0.12, 0.88)
        ↓
Dimension 2 (Living Things)

Observation:

"Computer" and "Smartphone" are close to each other (similar concepts)
"Dog" and "Cat" are close to each other (similar concepts)
Technology words are far from animal words (different concepts)

Why Vector Embeddings Matter

Traditional Keyword Search Problem

Query: "Find documents about automobiles"

Traditional System:

Searches for exact word "automobiles"
Misses documents containing "car", "vehicle", "truck"
No understanding of semantic similarity

Embedding-Based Semantic Search Solution

Query Embedding: "automobiles" → [0.82, 0.15, 0.43, ...]

Document Embeddings:

"car" → [0.81, 0.16, 0.42, ...] ✅ Similar vector = Matched
"vehicle" → [0.80, 0.17, 0.44, ...] ✅ Similar vector = Matched
"banana" → [0.10, 0.92, 0.05, ...] ❌ Different vector = Not matched

Result: AI understands meaning beyond exact keyword matching.

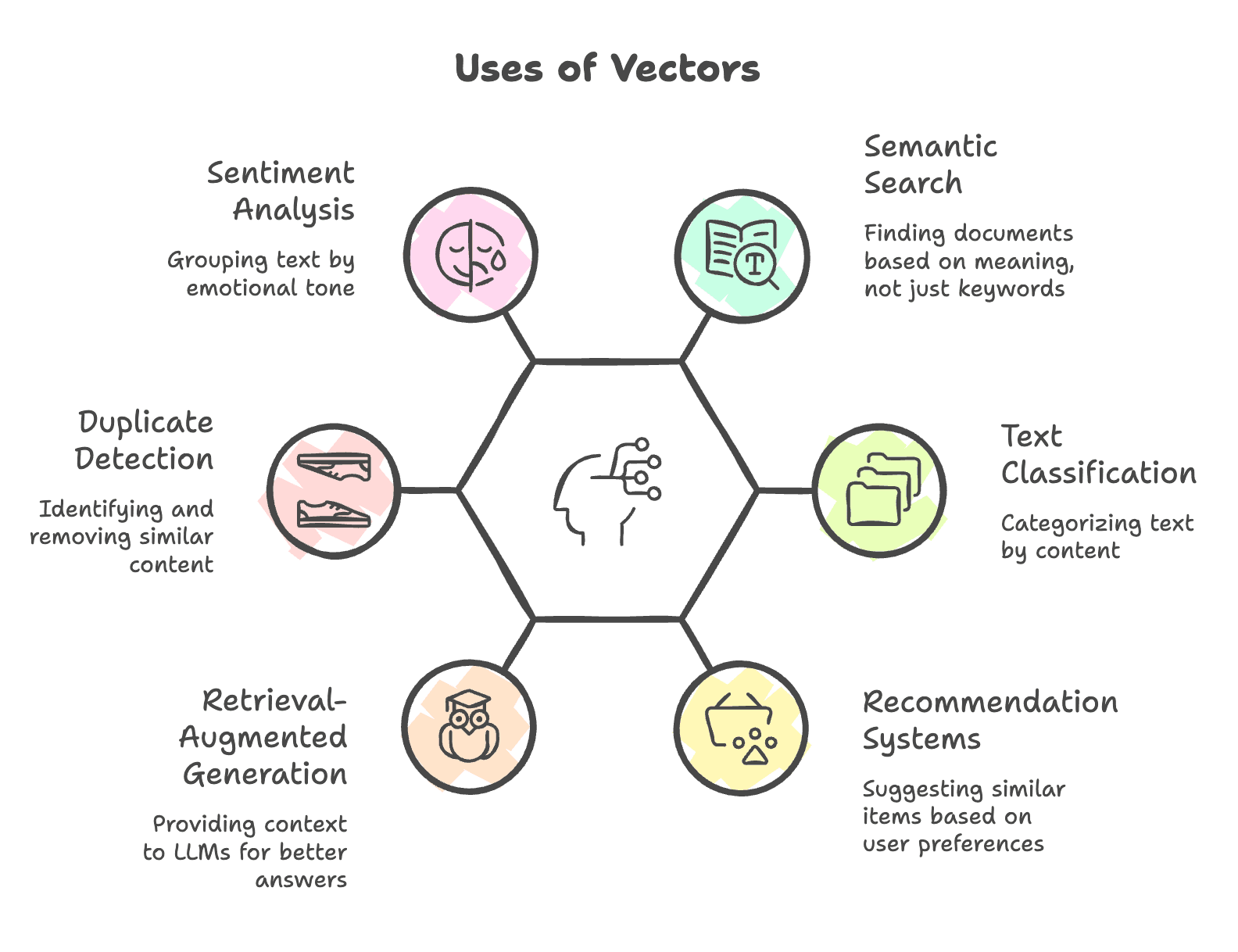

Vector_uses

How Vector Embeddings Work

Step 1: Tokenization

Break input text into tokens (words or sub-word units)

Example:

Input: "I love Java programming"

Tokenization:
["I", "love", "Java", "programming"]

Sub-word Tokenization (more common):
["I", "love", "Ja", "va", "program", "ming"]

Step 2: Token ID Mapping

Map tokens to predefined numerical IDs from the model's vocabulary

Example:

Token      → Token ID
"I"        → 234
"love"     → 1892
"Java"     → 5671
"programming" → 8234

Token IDs depend on the model’s tokenizer and vocabulary, and may vary across different models.

Step 3: Vector Conversion

Convert token IDs into high-dimensional vectors (embeddings)

Example:

"Java" → Token ID: 5671 → Vector: [0.23, -0.45, 0.78, ..., 0.12]
                                    ↑
                            1,024 to 3,072 dimensions

Step 4: Semantic Representation

The resulting vector captures the meaning and context of the input

Embedding Dimensions

What Are Dimensions?

Dimensions represent the number of numerical values in the embedding vector.

Common Dimension Sizes

Provider	Type	Dimensions	Use Case
Mistral	Text	1,024 (fixed)	General text embeddings
Mistral	Code	1,536-3,072 (configurable)	Code embeddings
OpenAI	Text	1,536	ada-002 model
OpenAI	Text	3,072	text-embedding-3-large

Dimension Impact

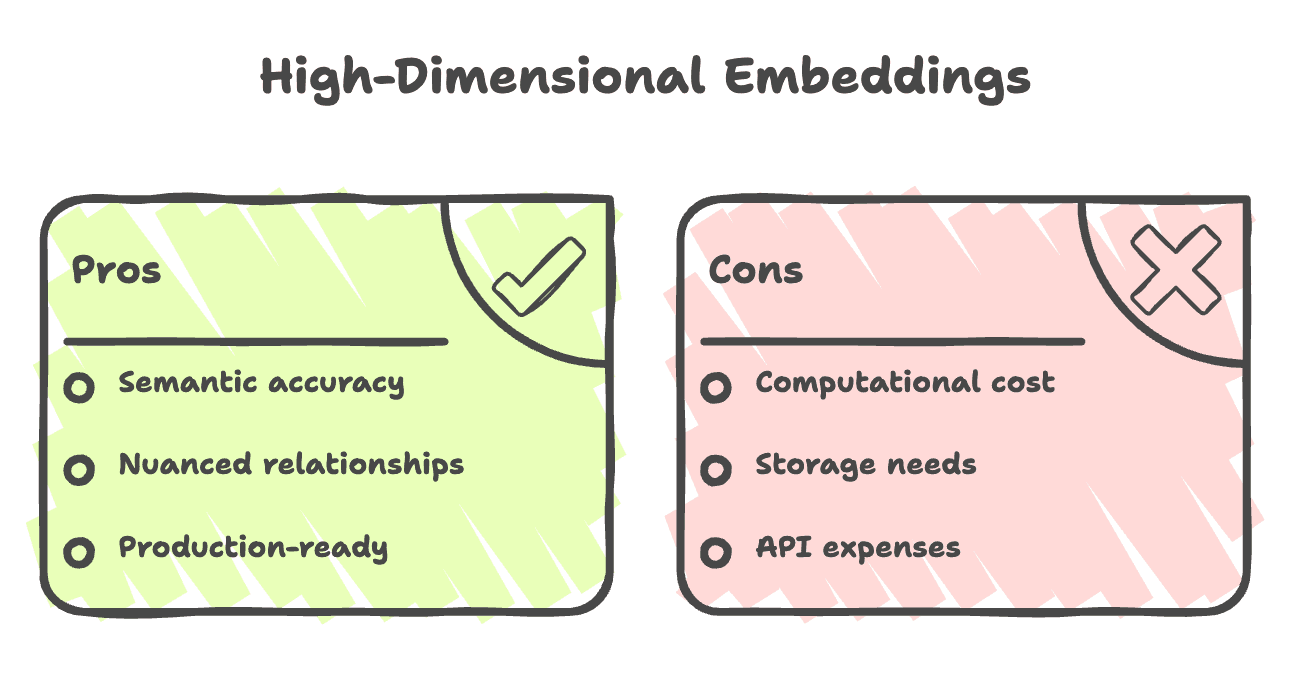

Higher_dimensions

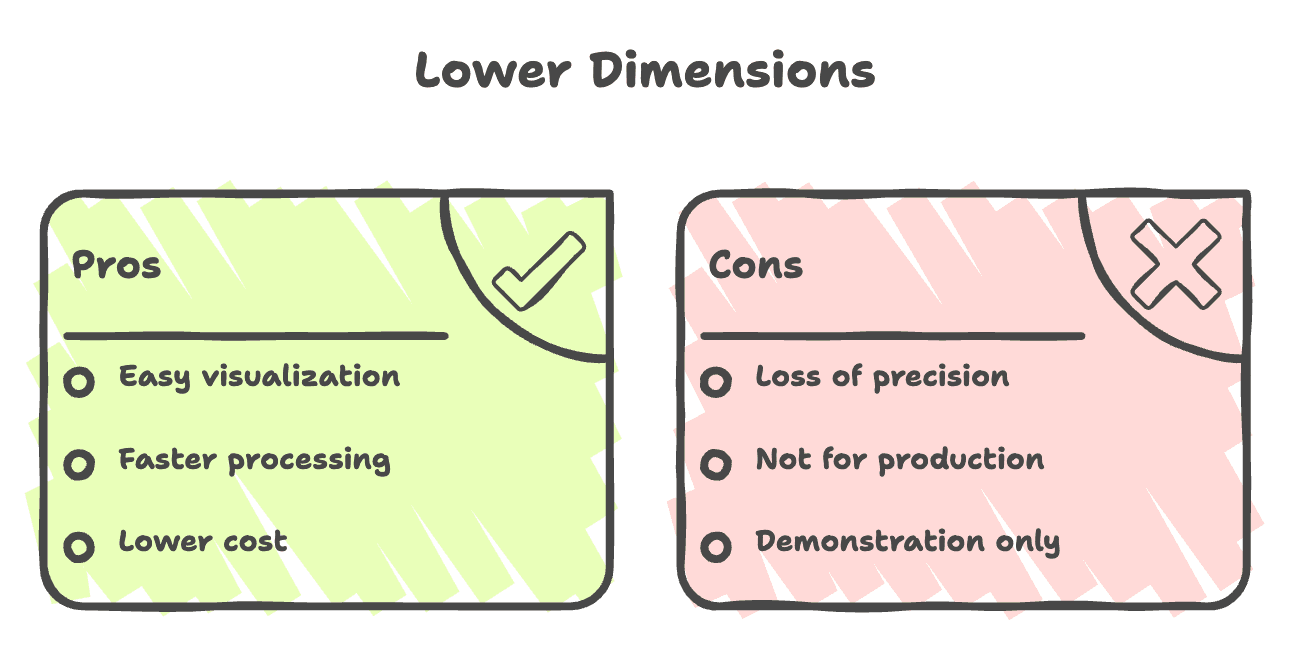

Lower_dimensions

Example: Dimension Effect

Input: "dog"

1,024-dimensional embedding:

[0.23, -0.45, 0.78, 0.12, ..., 0.56]  // 1,024 values

Result: Captures rich semantic meaning

2-dimensional embedding:

[-0.97, -0.12]  // 2 values

Result: Simplified, loses nuance but can be plotted on X-Y axis

Embedding Models vs LLMs

Key Differences

Aspect	Embedding Model	LLM (Language Model)
Purpose	Convert text to vectors	Generate text responses
Output	Numerical array	Human-readable text
Use Case	Semantic search, similarity	Chatbots, content generation
Example	Mistral Embed	Claude, GPT-4
API Cost	Lower	Higher

Not All Providers Offer Both

OpenAI: Provides both embedding models and LLMs (GPT-4)
Mistral AI: Provides both embedding models and LLMs
Anthropic: Provides LLMs (Claude) but recommends third-party embedding models

Mistral AI Embedding Models

Two Specialized Models

1. Mistral Embed (Text)

Purpose: General text embeddings

Specifications:

Dimensions: 1,024 (fixed)
Use Case: Documents, articles, general text
API Endpoint: https://api.mistral.ai/v1/embeddings

Example Usage:

{
  "model": "mistral-embed",
  "input": "I love Java programming"
}

2. Codestral Embed (Code)

Purpose: Source code embeddings

Specifications:

Dimensions: 1,536 to 3,072 (configurable)
Use Case: Code search, code similarity
Special Handling: Understands programming syntax (brackets, semicolons, etc.)

Example Usage:

{
  "model": "codestral-embed",
  "input": "public class Main { }",
  "encoding_format": "float"
}

Measuring Similarity: Cosine Similarity

How AI Determines "Closeness"?

Vector embeddings use cosine similarity to measure how similar two vectors are.

Formula

Cosine Similarity = (A · B) / (||A|| × ||B||)

Where:

A · B = Dot product of vectors A and B
||A|| = Magnitude of vector A
||B|| = Magnitude of vector B

Similarity Score Range

1.0   = Identical vectors (perfect match)
0.5   = Moderately similar
0.0   = Completely unrelated
-1.0  = Opposite meanings

Example Calculation

Vector("dog")  = [0.8, 0.2, 0.1]
Vector("cat")  = [0.75, 0.25, 0.15]
Vector("car")  = [0.1, 0.85, 0.05]

Cosine Similarity:
- dog vs cat = 0.92  (very similar) ✅
- dog vs car = 0.31  (not similar) ❌

Setting Up Mistral AI in Spring Boot

Step 1: Obtain API Key

Visit: https://console.mistral.ai/home
Create an account or log in
Navigate to API Keys section
Click Generate API Key
Copy and store the key securely

Step 2: Add Dependency

Add Spring AI Mistral starter to pom.xml:

<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-mistral-spring-boot-starter</artifactId>
    <version>2.0.0</version>
</dependency>

Step 3: Configure Application Properties

Add to application.properties:

# Anthropic for chat (if using)
spring.ai.anthropic.api-key=YOUR_ANTHROPIC_KEY
spring.ai.anthropic.chat.options.model=claude-sonnet-4-6

# Mistral for embeddings
spring.ai.mistral.api-key=YOUR_MISTRAL_API_KEY
spring.ai.mistral.embedding.options.model=mistral-embed

You can use different providers for chat and embeddings!

Implementation in Spring Boot

Controller Example

package com.telusko.springaidemo;

import org.springframework.ai.anthropic.AnthropicChatModel;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.embedding.EmbeddingModel;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.ai.chat.model.ChatResponse;
import org.springframework.web.bind.annotation.PathVariable;

@RestController
public class AIController {

    @Autowired
    private EmbeddingModel embeddingModel;

    private ChatClient chatClient;

    public AIController(AnthropicChatModel chatModel) {
        this.chatClient = ChatClient.builder(chatModel).build();
    }

    // Chat endpoint
    @GetMapping("/api/question/{message}")
    public String getResponse(@PathVariable String message) {
        ChatResponse response = chatClient
                .prompt(message)
                .call()
                .chatResponse();

        int metadata = response.getMetadata().getUsage().getTotalTokens();
        System.out.println("Total tokens used: " + metadata);

        return response.getResult().getOutput().getText();
    }

    // Embedding endpoint
    @GetMapping("/api/embedding")
    public float[] getEmbedding(@RequestParam String text) {
        return embeddingModel.embed(text);
    }
}

Understanding the Code

1. Dependency Injection

@Autowired
private EmbeddingModel embeddingModel;

What Happens:

Spring Boot auto-configures EmbeddingModel bean
Uses Mistral AI based on application.properties
Ready to use without manual configuration

2. Embedding Generation

@GetMapping("/api/embedding")
public float[] getEmbedding(@RequestParam String text) {
    return embeddingModel.embed(text);
}

What It Does:

Accepts text as query parameter
Calls Mistral API internally
Returns float array (embedding vector)

3. Using Multiple Providers

// Anthropic for chat
public AIController(AnthropicChatModel chatModel) {
    this.chatClient = ChatClient.builder(chatModel).build();
}

// Mistral for embeddings
@Autowired
private EmbeddingModel embeddingModel;

Key Insight: You can mix and match providers in the same application!

Testing Your Embedding API

Using Browser

http://localhost:8080/api/embedding?text=I love Java programming

Using Postman/Insomnia

Method: GET URL: http://localhost:8080/api/embedding Query Parameter:

Key: text
Value: dog

Expected Response

[
  0.23486328,
  -0.45117188,
  0.78515625,
  0.12304688,
  ...
  0.56640625
]

Note: Array length = 1,024 for Mistral Embed

Using cURL

curl "http://localhost:8080/api/embedding?text=dog"

Comparing Different Inputs

Example 1: Similar Words

Request 1:

GET /api/embedding?text=dog

Response:

[0.82, -0.15, 0.43, 0.21, ...]

Request 2:

GET /api/embedding?text=puppy

Response:

[0.80, -0.14, 0.45, 0.20, ...]

Observation: Similar vectors indicate semantic similarity

Example 2: Different Words

Request 1:

GET /api/embedding?text=dog

Response:

[0.82, -0.15, 0.43, ...]

Request 2:

GET /api/embedding?text=computer

Response:

[-0.12, 0.92, -0.67, ...]

Observation: Very different vectors indicate different meanings

Important Considerations

1. Case Sensitivity

Different models handle case differently:

Mistral:

"dog"  → [-0.97, -0.12, ...]
"Dog"  → [-0.95, -0.10, ...]  // Slightly different
"DOG"  → [-0.93, -0.09, ...]  // Different again

Best Practice: Normalize text (lowercase) before generating embeddings

2. Tokenizer Compatibility

Critical Rule: Always use the same provider's embedding model and tokenizer together.

Why?

Each model has its own vocabulary and tokenization rules
Mismatched tokenizers produce incorrect embeddings

Example:

// ❌ WRONG: OpenAI tokenizer with Mistral embeddings
String tokens = openAiTokenizer.tokenize(text);
float[] embedding = mistralEmbedding.embed(tokens);  // Incorrect results!

// ✅ CORRECT: Mistral handles tokenization internally
float[] embedding = mistralEmbedding.embed(text);  // Correct!

3. Model-Specific Outputs

Different providers produce different embedding values for the same input:

Input: "Java programming"

Mistral Embed:

[0.23, -0.45, 0.78, ...]  // 1,024 dimensions

OpenAI ada-002:

[0.15, -0.32, 0.91, ...]  // 1,536 dimensions

Important: Never compare embeddings from different models directly!

Real-World Application: Semantic Search

Use Case: Document Search System

Scenario: Find relevant documentation for user queries

Implementation Steps

Step 1: Generate Embeddings for Documents

// Store document embeddings in database
List<String> documents = List.of(
    "Java is an object-oriented programming language",
    "Python is great for data science",
    "Spring Boot simplifies Java development"
);

for (String doc : documents) {
    float[] embedding = embeddingModel.embed(doc);
    // Save to database: [doc_id, embedding]
}

Step 2: Generate Embedding for Query

String userQuery = "How do I develop Java applications?";
float[] queryEmbedding = embeddingModel.embed(userQuery);

Step 3: Calculate Similarity

// Pseudo-code
List<Document> results = database
    .findAll()
    .stream()
    .map(doc -> {
        double similarity = cosineSimilarity(queryEmbedding, doc.getEmbedding());
        return new SearchResult(doc, similarity);
    })
    .sorted(Comparator.reverseOrder())
    .limit(5)
    .collect(Collectors.toList());

Step 4: Return Most Similar Documents

Result:

1. "Spring Boot simplifies Java development" (similarity: 0.89)
2. "Java is an object-oriented programming language" (similarity: 0.76)
3. "Python is great for data science" (similarity: 0.23)

Common Issues and Solutions

Issue 1: Bean Conflict Error

Problem:

Multiple beans of type EmbeddingModel found

Solution: Specify the provider explicitly in application.properties:

spring.ai.mistral.embedding.enabled=true
spring.ai.openai.embedding.enabled=false

Issue 2: API Key Not Found

Error:

401 Unauthorized: API key is missing

Solution: Verify application.properties:

spring.ai.mistral.api-key=YOUR_ACTUAL_KEY_HERE

Issue 3: Different Results for Same Input

Observation: Running the same query twice gives slightly different embeddings

Explanation: This is normal! Some models introduce minor randomness. The vectors should be very close but not identical.

Solution: Use cosine similarity to compare—small differences won't affect similarity scores significantly.

Best Practices

1. Normalize Input Text

String normalized = text.toLowerCase().trim();
float[] embedding = embeddingModel.embed(normalized);

2. Handle Long Text

Most models have token limits (e.g., 512 tokens):

if (text.length() > MAX_LENGTH) {
    text = text.substring(0, MAX_LENGTH);
}
float[] embedding = embeddingModel.embed(text);

3. Store Embeddings Efficiently

Use specialized vector databases:

Pinecone
Weaviate
Milvus
PostgreSQL with pgvector extension

4. Monitor API Usage

Track embedding generation for cost control:

int totalEmbeddings = 0;

public float[] getEmbedding(String text) {
    totalEmbeddings++;
    System.out.println("Total embeddings generated: " + totalEmbeddings);
    return embeddingModel.embed(text);
}

Summary

Vector embeddings represent text as numerical vectors, capturing semantic meaning and enabling machines to understand relationships between words and phrases.
They are generated through a process of tokenization and vector transformation, converting input text into high-dimensional representations.
Embeddings are essential for semantic search and similarity detection, where closer vectors indicate more similar meanings.
They differ from LLMs in purpose, as embeddings focus on representation and comparison rather than generating text.
Model and dimension choices impact performance and cost, with higher dimensions offering better accuracy but increased computational expense.
Consistency in provider usage is critical, as embeddings from different models are not compatible, and Spring AI simplifies integration using EmbeddingModel.

Written By: Muskan Garg

Vector Embeddings

On this page
