HashMap Internals

HashMap is one of the most widely used data structures in Java, providing fast O(1) average-case performance for insertions, deletions, and lookups. Understanding HashMap internals is crucial for:

• Writing efficient code
• Avoiding performance pitfalls
• Debugging issues
• Acing technical interviews

HashMap is part of the Java Collections Framework and implements the Map interface, storing key-value pairs with no guaranteed order.

What is a HashMap?

HashMap is a hash table-based implementation of the Map interface that:

• Stores data as key-value pairs
• Uses hashing to determine storage location
• Allows one null key and multiple null values
• Provides O(1) average time complexity for basic operations
• Is not synchronized (not thread-safe)
• Maintains no order of elements

Map<String, Integer> map = new HashMap<>();
map.put("Alice", 25);    // Store key-value pair
map.put("Bob", 30);
int age = map.get("Alice");  // Retrieve value: 25

Core Concepts

1. Hash Function

A hash function converts a key into an integer (hash code) to determine the storage location.

Process:

int hash = key.hashCode();              // Get hash code
int index = hash & (capacity - 1);      // Calculate bucket index

Example:

String key = "Alice";
int hashCode = key.hashCode();          // 63658432
int capacity = 16;                       // Default initial capacity
int index = hashCode & (capacity - 1);  // 0 (bucket index)

2. Buckets (Array)

HashMap internally uses an array of nodes (buckets) to store entries.

┌─────────────────────────────────────┐
│      HashMap Internal Array         │
├─────────────────────────────────────┤
│  Index 0: Node → Node → Node        │  (Linked List)
│  Index 1: null                      │
│  Index 2: Node → Node               │
│  Index 3: null                      │
│  Index 4: Node                      │
│  ...                                │
│  Index 15: Node → Node → Node → ... │
└─────────────────────────────────────┘

Each bucket can contain:

• null (empty)
• Single node (one entry)
• Linked list of nodes (collision handling)
• Red-Black Tree (Java 8+, when list becomes too long)

3. Hash Collision

Collision occurs when two different keys produce the same bucket index.

// Collision example
String key1 = "Aa";  // hashCode: 2112
String key2 = "BB";  // hashCode: 2112
// Both map to same bucket!

Handling Collisions:

• Chaining (Separate Chaining): Store colliding entries in a linked list
• Treeification (Java 8+): Convert list to Red-Black Tree when list size ≥ 8

HashMap Internal Structure

Node (Entry)

Each entry in HashMap is stored as a Node:

static class Node<K,V> implements Map.Entry<K,V> {
    final int hash;       // Cached hash code
    final K key;          // Key
    V value;              // Value
    Node<K,V> next;       // Reference to next node (for chaining)

    Node(int hash, K key, V value, Node<K,V> next) {
        this.hash = hash;
        this.key = key;
        this.value = value;
        this.next = next;
    }
}

Visual Representation:

[hash: 2112 | key: "Alice" | value: 25 | next: →] → [hash: 3443 | key: "Bob" | value: 30 | next: null]

TreeNode (Java 8+)

When a bucket's linked list grows too large (≥8 nodes), it converts to a Red-Black Tree for better performance.

static final class TreeNode<K,V> extends LinkedHashMap.Entry<K,V> {
    TreeNode<K,V> parent;  // Red-Black Tree structure
    TreeNode<K,V> left;
    TreeNode<K,V> right;
    TreeNode<K,V> prev;
    boolean red;
}

Why Treeification?

• Worst-case linked list: O(n) lookup
• Red-Black Tree: O(log n) lookup
• Improves performance when many collisions occur

HashMap Operations

1. put() Operation

Steps:

1. Calculate hash code of key
2. Determine bucket index
3. Check if key exists (update value if yes)
4. Add new node if key doesn't exist
5. Handle collisions (chaining or treeification)
6. Resize if load factor threshold exceeded

Example:

Map<String, Integer> map = new HashMap<>();
map.put("Alice", 25);  // Bucket calculated, node created
map.put("Bob", 30);    // Different bucket
map.put("Alice", 26);  // Same key, value updated to 26

2. get() Operation

Steps:

1. Calculate hash code of key
2. Determine bucket index
3. Check first node
4. Traverse linked list or tree if needed
5. Return value or null

Example:

Map<String, Integer> map = new HashMap<>();
map.put("Alice", 25);
int age = map.get("Alice");  // Returns 25
int missing = map.get("Charlie");  // Returns null (or throws NPE if unboxing)

3. remove() Operation

Steps:

1. Calculate hash and find bucket
2. Locate node with matching key
3. Remove node from list or tree
4. Return removed value

Example:

map.remove("Alice");  // Removes entry, returns 25

HashMap Parameters

1. Initial Capacity

Definition: Number of buckets in the hash table at creation.

Default: 16

// Default capacity
Map<String, Integer> map1 = new HashMap<>();  // Capacity: 16

// Custom capacity
Map<String, Integer> map2 = new HashMap<>(32);  // Capacity: 32

Note: Capacity is always a power of 2 (16, 32, 64, 128, ...).

Why Power of 2?

• Enables fast modulo operation: hash & (capacity - 1) instead of hash % capacity
• Better hash distribution

2. Load Factor

Definition: Threshold at which HashMap resizes.

Formula: Load Factor = Number of Entries / Capacity

Default: 0.75

// Default load factor (0.75)
Map<String, Integer> map1 = new HashMap<>();

// Custom load factor
Map<String, Integer> map2 = new HashMap<>(16, 0.5f);

Threshold: Threshold = Capacity × Load Factor

Example:

• Capacity: 16
• Load Factor: 0.75
• Threshold: 16 × 0.75 = 12

When size reaches 12, HashMap resizes (doubles capacity).

Trade-off:

• Higher load factor (0.9): Less memory, more collisions
• Lower load factor (0.5): More memory, fewer collisions

3. Threshold

Definition: Maximum number of entries before resizing.

Calculation: Threshold = Initial Capacity × Load Factor

Default: 16 × 0.75 = 12

Resizing (Rehashing)

When the number of entries exceeds the threshold, HashMap doubles its capacity and rehashes all entries.

Process:

1. Create new array with double capacity
2. Recalculate index for each entry
3. Move entries to new array
4. Update threshold

Example:

Initial: Capacity = 16, Threshold = 12
Add 12 entries → Resize triggered
New: Capacity = 32, Threshold = 24

Performance Impact:

• Resizing is expensive: O(n) operation
• Pre-sizing HashMap can avoid resizing:

  // If you know you'll have 100 entries
  int expectedSize = 100;
  int capacity = (int) (expectedSize / 0.75) + 1;  // 134
  Map<String, Integer> map = new HashMap<>(capacity);

Collision Handling Evolution

Java 7 and Earlier: Linked List Only

Bucket 5: Node1 → Node2 → Node3 → Node4 → Node5 → ...

Problem: Worst case O(n) for deeply colliding buckets.

Java 8+: Linked List + Red-Black Tree

Strategy:

• List size < 8: Use linked list
• List size ≥ 8: Convert to Red-Black Tree (treeification)
• Tree size ≤ 6: Convert back to linked list (untreeification)

Bucket 5 (size < 8):
Node1 → Node2 → Node3 → Node4

Bucket 5 (size ≥ 8):
       Node5
      /     \
   Node2    Node8
   /  \      /  \
Node1 Node3 Node7 Node9

Benefits:

• Improved worst-case performance: O(log n) instead of O(n)
• Protection against hash collision attacks

Constants:

static final int TREEIFY_THRESHOLD = 8;   // Convert to tree
static final int UNTREEIFY_THRESHOLD = 6; // Convert to list
static final int MIN_TREEIFY_CAPACITY = 64; // Min capacity for treeification

HashMap vs HashTable vs ConcurrentHashMap

Common Pitfalls

1. Mutable Keys

Problem: Changing a key after insertion breaks HashMap.

class Person {
    String name;
    int age;

    // hashCode() based on name and age
    @Override
    public int hashCode() {
        return Objects.hash(name, age);
    }
}

Person person = new Person("Alice", 25);
map.put(person, "Data");

person.age = 26;  // CHANGED KEY!
map.get(person);  // Returns null (hash changed!)

Solution: Use immutable keys (String, Integer, or immutable custom objects).

2. Poor hashCode() Implementation

Problem: All objects hash to same value → all entries in one bucket.

// Bad hashCode
@Override
public int hashCode() {
    return 1;  // All objects have same hash!
}

Result: Degrades to O(n) performance (linked list).

Solution: Properly implement hashCode() with good distribution.

@Override
public int hashCode() {
    return Objects.hash(field1, field2, field3);
}

3. Not Overriding equals()

Problem: hashCode() overridden but not equals().

class Key {
    int id;

    @Override
    public int hashCode() {
        return id;
    }

    // Missing equals()!
}

Key k1 = new Key(1);
Key k2 = new Key(1);
map.put(k1, "Value");
map.get(k2);  // Returns null (different objects, equals() uses ==)

Solution: Always override both hashCode() and equals() together.

@Override
public boolean equals(Object o) {
    if (this == o) return true;
    if (o == null || getClass() != o.getClass()) return false;
    Key key = (Key) o;
    return id == key.id;
}

4. Concurrent Modification

Problem: Modifying HashMap during iteration.

for (String key : map.keySet()) {
    map.remove(key);  // ConcurrentModificationException!
}

Solution: Use iterator's remove() method.

Iterator<String> it = map.keySet().iterator();
while (it.hasNext()) {
    String key = it.next();
    it.remove();  // Safe removal
}

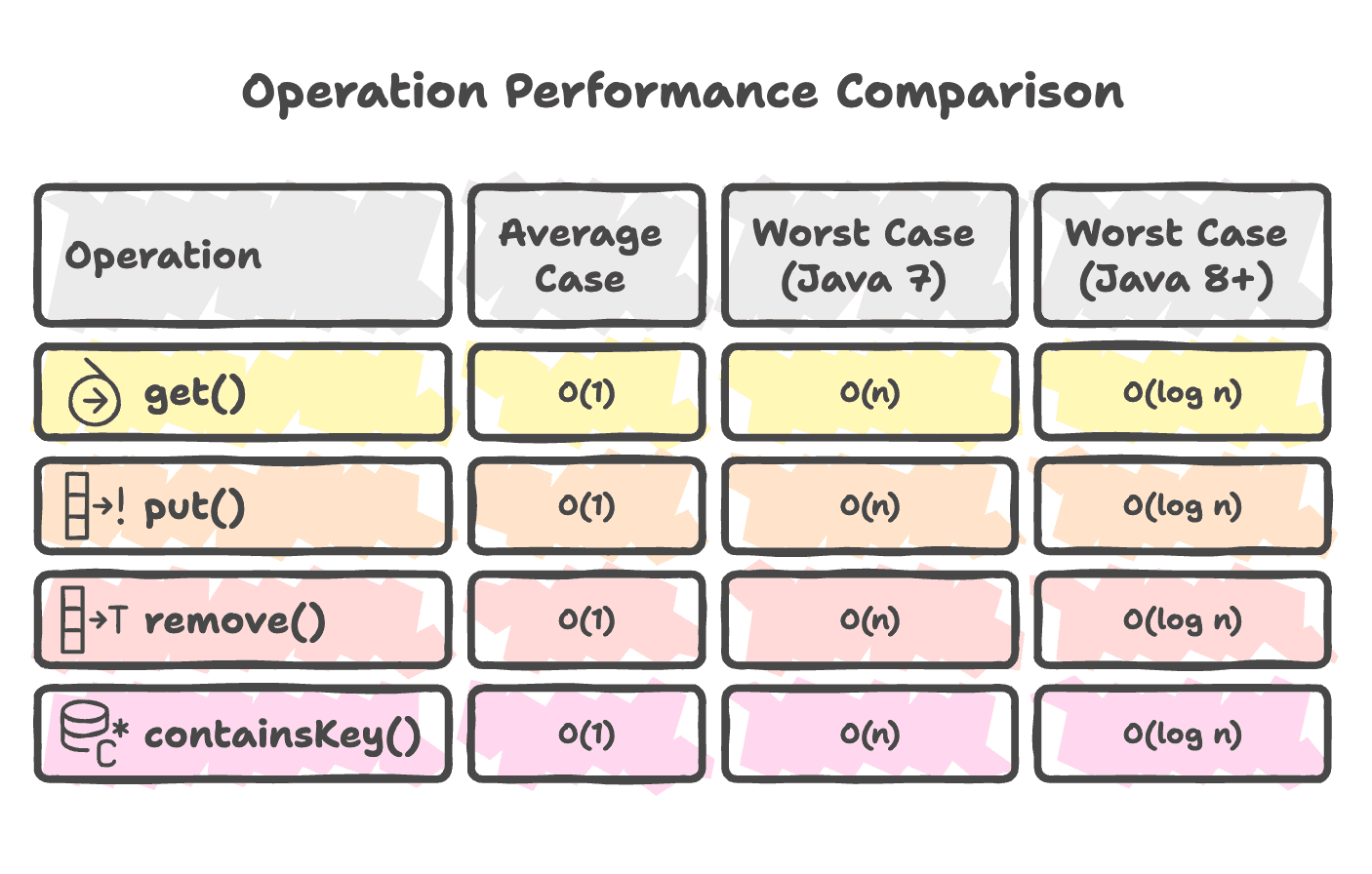

Performance Characteristics

Space Complexity: O(n) where n is the number of entries.

Practical Examples

Example 1: Word Frequency Counter

public Map<String, Integer> countWords(String text) {
    Map<String, Integer> frequency = new HashMap<>();

    String[] words = text.split("\\s+");
    for (String word : words) {
        frequency.put(word, frequency.getOrDefault(word, 0) + 1);
    }

    return frequency;
}

// Usage
String text = "hello world hello java world";
Map<String, Integer> counts = countWords(text);
// {hello=2, world=2, java=1}

Example 2: Two Sum Problem

public int[] twoSum(int[] nums, int target) {
    Map<Integer, Integer> map = new HashMap<>();

    for (int i = 0; i < nums.length; i++) {
        int complement = target - nums[i];
        if (map.containsKey(complement)) {
            return new int[] { map.get(complement), i };
        }
        map.put(nums[i], i);
    }

    return new int[] { -1, -1 };
}

// Usage
int[] nums = {2, 7, 11, 15};
int[] result = twoSum(nums, 9);  // [0, 1]

Summary

• HashMap is a widely used data structure in Java that stores key–value pairs using an internal array of buckets with hashing for fast data access.
• It handles hash collisions using linked lists and automatically converts long collision chains into Red-Black Trees (Java 8+) to maintain efficient lookup performance.
• Core operations such as put(), get(), and remove() generally provide O(1) average time complexity, although resizing operations can temporarily impact performance.
• Important configuration parameters include initial capacity, load factor, and threshold, which control when resizing occurs and influence overall performance.
• Efficient usage requires properly implementing hashCode() and equals() methods, using immutable keys, and pre-sizing the map when the expected size is known.
• HashMap is not thread-safe, for concurrent environments, alternatives such as ConcurrentHashMap or synchronized wrappers should be used.
